TS-0704-1X01- CO2 ManifoldUpdated 3 days ago
| TS-0704-1501 | Compressed Gas Solenoid Manifold Block |
| TS-0704-1601 | Modular Compressed Gas Solenoid Block |
Important Notes
Important Notes
- Use only high quality hose and fittings that is the correct size and pressure rating for your application when fitting your manifold – other hoses will be affected by heat and will eventually crack or split which could cause excessive boost pressure and engine damage
- Ensure that all plumbing is secured with clamps or cable ties
- Your CO2 Manifold should be mounted at least 100mm from any heat source.
Recommendations
Turbosmart recommends that once installed the part is correctly mounted as well as checked for any possible leaks.
Kit Contents
| Part | Description |
| 1 | Manifold Block |
| 2 | 1/8 NPT Nipple |
| 3 | 1/8 NPT Blank |
| 4 | Mount/associated parts |
| 5 | M3/6 Mounting Bolts |
Tools Required
General Mechanics Tools
How to install your sensor Block

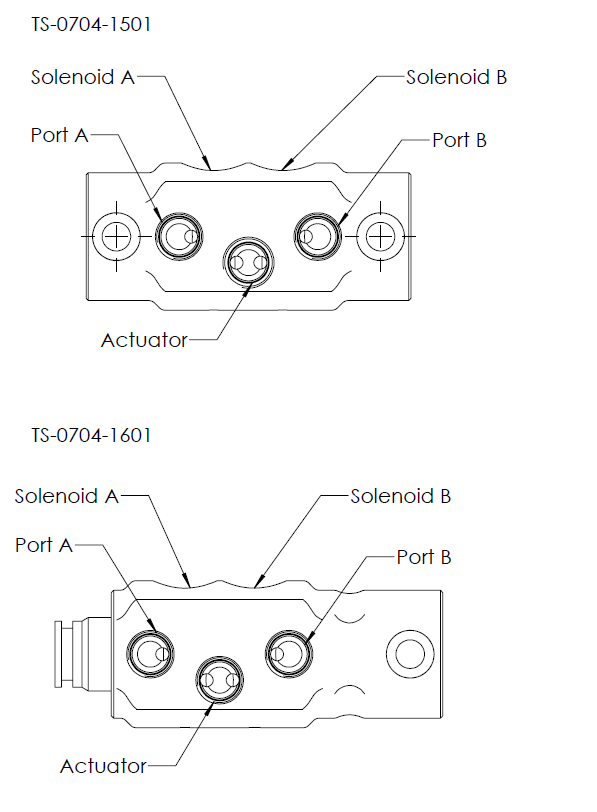

Two options are available for CO2 Hookup. They are detailed below
Wiring requires two digitally pulsed outputs and correct boost control setup. The other remaining wire on each solenopid is a shared 12V.
Option 2
Operation & Troubleshooting
- Manifold leaking – Check fittings are tight and o-rings are present or not damaged.
- Failing the above, submit a technical request to [email protected] with information regarding your car as well as photos of installation.
